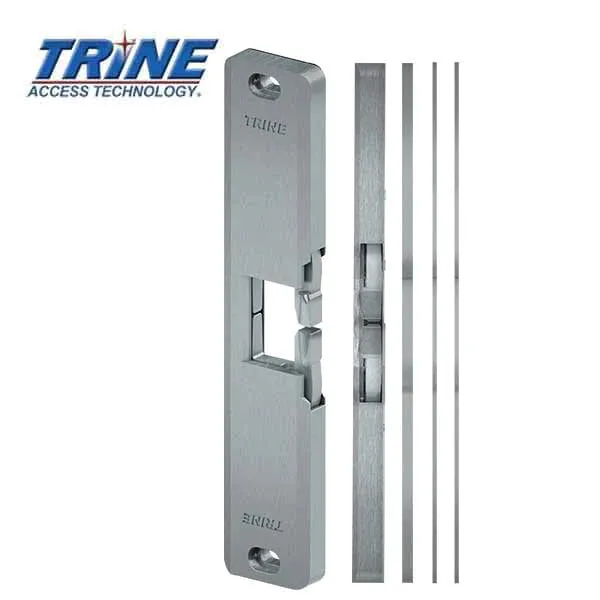

The 4850LB - 1/2″ Surface Mounted Electric Strike for Rim Panic Devices is the most flexible electric strike for use with surface-mounted rim exit devices with up to 1” (6 different thicknesses altogether).


4850LB Features:

• 1/2” thick Surface Mount electric strike comes with 1/4” and two (2) 1/16” Spacers plates -- the most versatile rim panic strike provides the flexibility of 6 different sizes!

• The electric strike Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.

• Comes with Trines Patented 6-Pin Anchoring System

• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.

• Fail-safe/Fail-secure (field selectable).

• Grade 1 Electric Strike -- 1,000,000 Life cycles -- 1,500 lbs. Holding Force

• No cutting or worrying about voltage means you are always prepared.

• Everyday Low Current Draw

• For a fire rated rim panic strike use the 4800F

Voltage	Amps	Wire Color	Duty	Sound
12DC	0.218	Red & Blue	Intm./Cont.	Silent
16DC	0.290	Red & Blue	Intm./Cont.	Silent
24DC	0.195	Brown & Blue	Intm./Cont.	Silent
